The ABT16374 is a 16-bit D-type flip-flop with 3-STATE outputs, designed for bus-oriented applications. The device features separate control logic for each byte, edge-triggered D-type inputs, buffered positive edge-triggered clock, high impedance glitch-free bus loading during the entire power up and power down cycle, non-destructive hot insertion capability, and guaranteed latch-up protection.

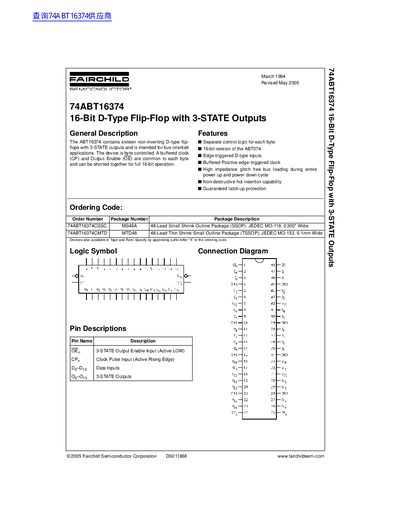

The document describes the ABT16374, which contains sixteen non-inverting D-type flip-flops with 3-STATE outputs intended for bus oriented applications. The device is byte controlled and features a buffered clock (CP) and Output Enable (OE). It supports high impedance glitch free bus loading during power up and down cycles.
| Supply Voltage (Operating) | +4.5V to +5.5V |
|---|---|
| Maximum Clock Frequency | 150 MHz |
| Package Type (SSOP) | 48-Lead Small Shrink Outline Package |
| Package Type (TSSOP) | 48-Lead Thin Shrink Small Outline Package |
The device is intended for bus oriented applications.
The device is byte controlled, with each byte functioning identically but independently of the other.
