74ABT126 is a Quad Buffer with 3-STATE Outputs produced by Fairchild Semiconductor Corporation. The buffer has non-inverting outputs, output sink capability of 64 mA, source capability of 32 m, guaranteed latchup protection, high impedance glitch free bus loading during entire power up and power down cycle, nondestructive hot insertion capability, disable time less than enable time to avoid bus contention.

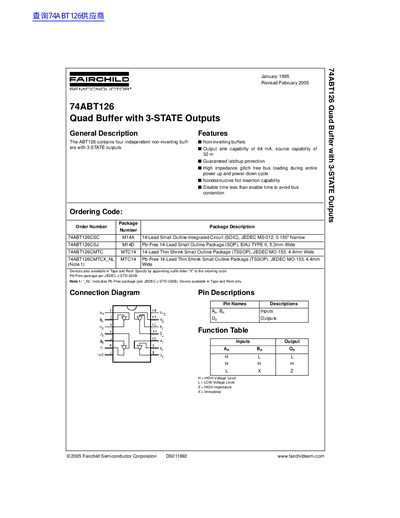

The document is a datasheet for the Fairchild Semiconductor 74ABT126, a quad buffer with 3-STATE outputs. It contains four independent non-inverting buffers designed for high-speed applications. Key features include guaranteed latchup protection, nondestructive hot insertion capability, and disable times less than enable times to avoid bus contention. The device offers an output sink capability of 64 mA and a source capability of 32 mA.
| Output sink capability | 64 mA |
|---|---|
| Package Types | SOIC, SOP, TSSOP |
It contains four independent non-inverting buffers with 3-STATE outputs.
Yes, it has nondestructive hot insertion capability.
The disable time is less than the enable time to avoid bus contention.
