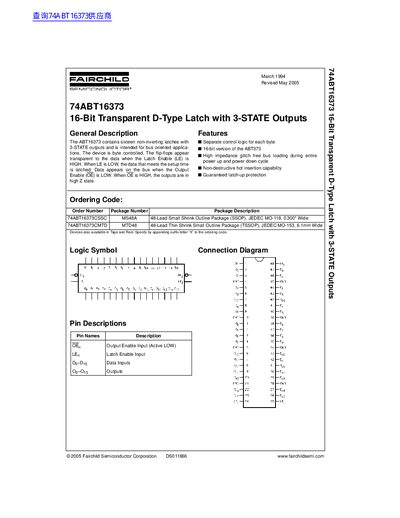

The 74ABT16373 is a 16-bit transparent D-type latch with 3-STATE outputs, designed for bus oriented applications. It features separate control logic for each byte, high impedance glitch free bus loading, non-destructive hot insertion capability, and latch-up protection. The product provides high performance and reliability.
The document describes the 74ABT16373, a device containing sixteen non-inverting latches with 3-STATE outputs. It is designed for byte-controlled bus-oriented applications where data appears on the bus when the Output Enable (OE) is LOW and is transparent to input changes when Latch Enable (LE) is HIGH.
| Number of Latches | Sixteen |
|---|---|
| Maximum Toggle Frequency | 100 MHz |
| Package Type | 48-Lead Small Shrink Outline Package (SSOP) |
It is intended for bus oriented applications.
Data appears on the bus when the Output Enable (OE) is LOW.
