74abt16244 is a 16-bit buffer/line driver with 3-state outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmit- ter/receiver.

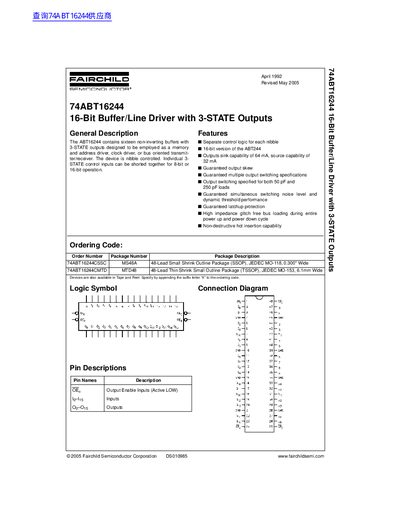

The document is a technical datasheet for the Fairchild Semiconductor 74ABT16244, a 16-bit buffer and line driver featuring non-inverting buffers with 3-STATE outputs. Designed as a memory and address driver or clock driver, the device utilizes nibble control logic where individual 3-STATE control inputs can be shorted together for either 8-bit or 16-bit operation.
The datasheet provides comprehensive electrical characteristics including absolute maximum ratings, DC and AC parameters under various load conditions (50 pF and 250 pF), skew specifications, and capacitance data. It also details available ordering codes for the device in Small Shrink Outline (SSOP) and Thin Shrink Small Outline (TSSOP) packages.
| Number of Buffers | 16 non-inverting buffers |
|---|---|
| Outputs Sink Capability | 64 mA |
| Outputs Source Capability | 32 mA |
| Operating Temperature Range (Commercial) | -40°C to +85°C |
| Supply Voltage (Recommended) | +4.5V to +5.5V |
| Package Type SSOP | MS48A |
| Package Type TSSOP | MTD48 |
It contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver.
Yes, individual 3-STATE control inputs can be shorted together for either 8-bit or 16-bit operation.
