The ABT16501 is an 18-bit universal bus transceiver that combines D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes. It has control functions such as output enable, latch enable, and clock input.

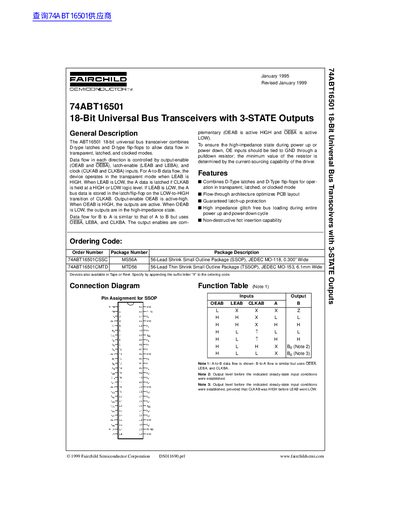

The document describes the 74ABT16501, an 18-bit universal bus transceiver that combines D-type latches and D-type flip-flops. It supports data flow in transparent, latched, and clocked modes for both A-to-B and B-to-A directions.
| Bit Width | 18-bit |
|---|---|
| Supply Voltage | +4.5V to +5.5V |
| Maximum Clock Frequency (Ta=125°C) | 150 MHz |
| Package Type | SSOP or TSSOP |
It combines D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes.
The OE inputs should be tied to GND through a pulldown resistor.
