The ABT16500 18-bit universal bus transceiver combines D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes

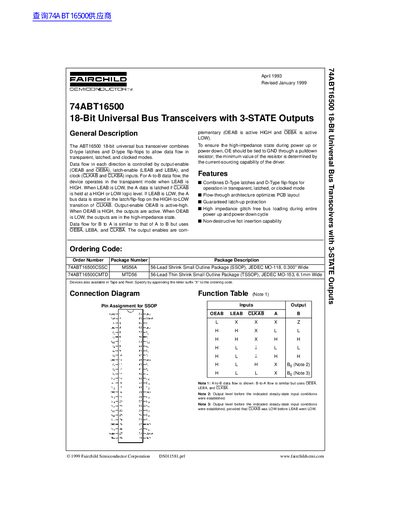

The 74ABT16500 is an 18-bit universal bus transceiver designed to combine D-type latches and D-type flip-flops. This architecture allows data flow in transparent, latched, and clocked modes, controlled by output-enable, latch-enable, and clock inputs. The device supports bidirectional data flow between buses A and B.
| Storage Temperature | -65°C to +150°C |
|---|---|
| Ambient Temperature under Bias | -55°C to +125°C |
| Supply Voltage | +4.5V to +5.5V |
| Maximum Clock Frequency | 150 MHz |
| Package Description | 56-Lead Shrink Small Outline Package (SSOP) |
| Input HIGH Voltage | 2.0 V |
| Input LOW Voltage | 0.8 V |
It supports transparent, latched, and clocked modes for data flow.
Data flow is controlled by output-enable, latch-enable, and clock inputs.
The minimum value is determined by the current-sourcing capability of the driver.
