The SS22-S210 is a Schottky rectifier from Fairchild Semiconductor Corporation. It has high current capability, low VF and is suitable for low voltage, high frequency inverters, free wheeling and polarity protection applications.

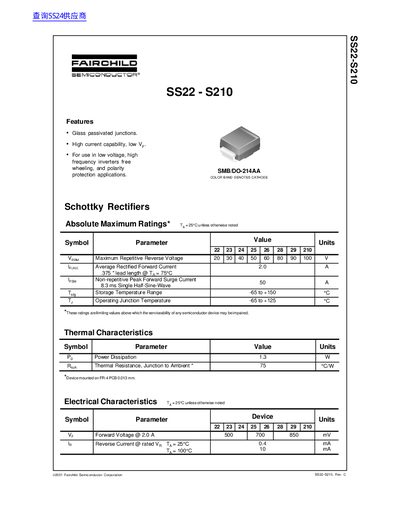

This document is a datasheet for Fairchild Semiconductor's SS22-S210 Schottky Rectifiers. The devices are designed for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications. They feature glass passivated junctions and high current capability with low voltage drop.
| Maximum Repetitive Reverse Voltage | 20 to 100 V |
|---|---|
| Average Rectified Forward Current | 2.0 A |
| Non-repetitive Peak Forward Surge Current | 50 A |
| Storage Temperature Range | -65 to +150 °C |
| Operating Junction Temperature | -65 to +125 °C |
| Power Dissipation | 1.3 W |
| Thermal Resistance, Junction to Ambient | 75 °C/W |
| Forward Voltage @ 2.0A | 500 to 700 mV |
| Reverse Current @ rated Vp | 0.4 mA |
They are intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
The storage temperature range is from -65 to +150 °C.
No, Fairchild's products are not authorized for use as critical components in life support devices or systems without express written approval.
