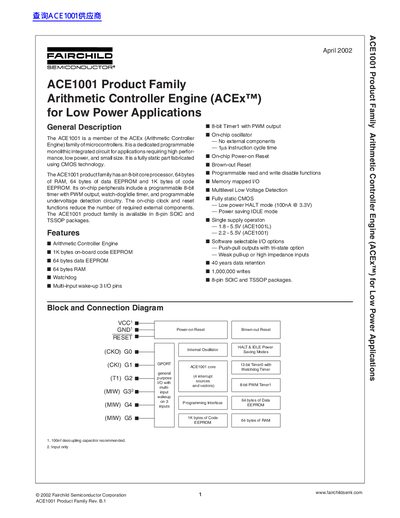

The ACE1001 is a member of the ACEx (Arithmetic Controller Engine) family of microcontrollers. It is a dedicated programmable monolithic integrated circuit for applications requiring high performance, low power, and small size. It has an 8-bit core processor, 64 bytes of RAM, 64 bytes of data EEPROM, and 1K bytes of code EEPROM. Its on-chip peripherals include a programmable 8-bit timer with PWM output, watch-dog/idle timer, and programmable undervoltage detection circuitry. The ACE1001 product family is available in 8-pin SOIC and TSSOP packages.
The ACE1001 is a member of the ACEx (Arithmetic Controller Engine) family of microcontrollers designed for high performance, low power, and small size applications. It features an 8-bit core processor with 64 bytes of RAM, 64 bytes of data EEPROM, and 1K bytes of code EEPROM.
| Core Processor | 8-bit core processor |
|---|---|
| RAM Size | 64 bytes |
| Data EEPROM Size | 64 bytes |
| Code EEPROM Size | 1K bytes |
| Supply Voltage (ACE1001L) | 1.8 to 5.5V |
| Operating Temperature (Extended) | -40°C to +85°C |
| Instruction Cycle Time (Typical) | 1.0 µs |
| Packages Available | 8-pin SOIC and TSSOP |
The ACE1001 operates on a single supply of 2.2 to 5.5V, while the low-power variant ACE1001L operates from 1.8 to 5.5V.
Yes, it includes an on-chip oscillator which eliminates the need for external components.
The device provides 40 years of data retention for its memory.
