KSR2005 is a PNP type transistor produced by Fairchild Semiconductor Corporation. It features a high current conduction, low voltage, low power consumption and high frequency. Therefore, it is widely used in switching circuits, inverters, interface circuits and driver circuits.

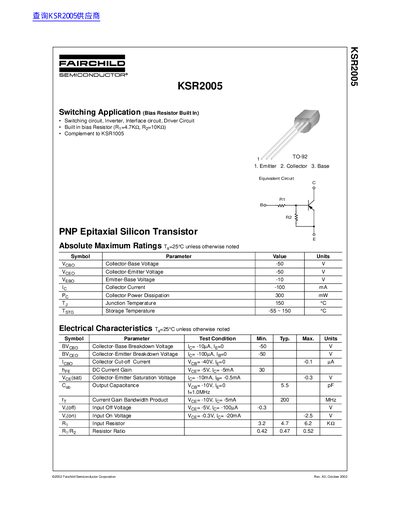

This document is a datasheet for the Fairchild Semiconductor KSR2005, a PNP epitaxial silicon transistor designed for switching applications. It features a built-in bias resistor (Ry=4.7kΩ, Ra=10kΩ) and serves as a complement to the KSR1005 model. The device is housed in a TO-92 package.
| Emitter-Base Voltage | -10 V |
|---|---|
| Collector Current | -100 mA |
| Collector Power Dissipation | 300 mW |
| Storage Temperature | -55 ~ 150 °C |
| Input Resistor | 4.7 kΩ |
The built-in bias resistors are Ry=4.7kΩ and Ra=10kΩ.
Yes, it is the complement to the KSR1005.
