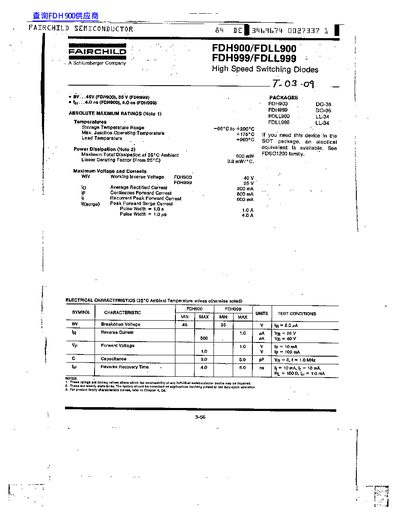

This document is a datasheet for Fairchild Semiconductor's FDH900/FDLL900 and FDH999/FDLL999 High Speed Switching Diodes. It provides technical specifications including absolute maximum ratings such as storage temperature range and power dissipation, as well as electrical characteristics like breakdown voltage and reverse recovery time.
| Reverse Recovery Time | 4.0 ns (FDH900), 5.0 ns (FDH999) |
|---|---|
| Average Rectified Current | 200 mA |
| Continuous Forward Current | 500 mA |
| Storage Temperature Range | -65°C to +200°C |
The maximum junction operating temperature is +176°C.
The maximum total dissipation at 25°C ambient is 500 mW.
