The K6F4008U2E is a 512K x8 bit super low power and low voltage full CMOS static RAM produced by Samsung Electronics. It supports industrial temperature range of -40~85℃ and a power supply voltage range of 2.7~3.3V. The minimum standby power consumption is 1.0µA and the maximum operating current is 2mA.

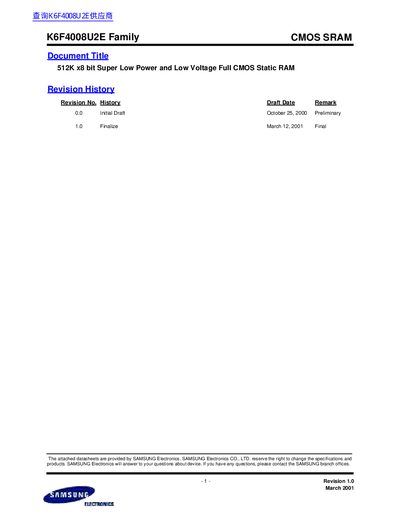

This document provides a technical overview of the K6F4008U2E Family CMOS SRAM, which utilizes advanced full CMOS process technology. The devices are organized as 512K x 8-bit static RAMs designed for industrial temperature ranges and support low data retention voltage for battery back-up operations.
| Organization | 512K x 8 bit |
|---|---|
| Power Supply Voltage | 2.7~3.3V |
| Low Data Retention Voltage | 1.5V(Min) |
| Operating Temperature | -40~85°C |
| Package Type | 48(36)-TBGA-6.00x7.00 |
| Read Cycle Time (55ns) | 55 ns |
The device operates within an industrial temperature range of -40 to 85 degrees Celsius.
