This datasheet provides the specifications of K6F4016U4G series products, including operating temperature range, voltage range, speed, power consumption, package type, standby current, operating current, etc.

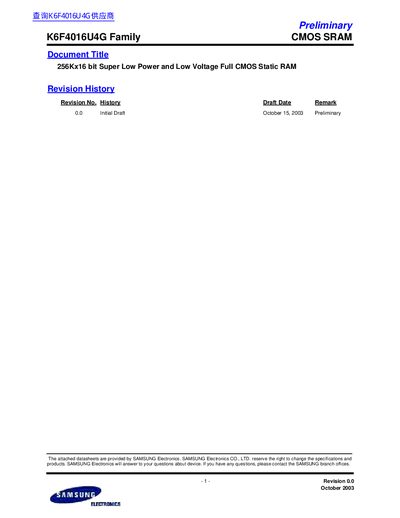

This document is a preliminary datasheet for the Samsung K6F4016U4G Family, a 256K x 16 bit Super Low Power and Low Voltage Full CMOS Static RAM. The device supports an industrial temperature range and utilizes a 48-ball Chip Scale Package (TBGA) for system design flexibility. It features low data retention voltage capabilities suitable for battery back-up operations.
| Organization | 256K x 16 bit |
|---|---|
| Power Supply Voltage | 2.7~3.3V |
| Low Data Retention Voltage | 1.5V (Min) |
| Package Type | 48-TBGA-6.00x7.00 |
| Operating Temperature | -40 to 85 °C |
| Read cycle time (55ns) | 55 ns |
| Read cycle time (70ns) | 70 ns |
The K6F4016U4G Family is organized as 256K x 16 bit.
The minimum voltage for data retention is 1.5V.
The operating temperature range is -40 to 85 °C.
