LT104S1-101 is a voltage reference produced by LT company. It has high accuracy, low noise, low power consumption, high stability and other characteristics.

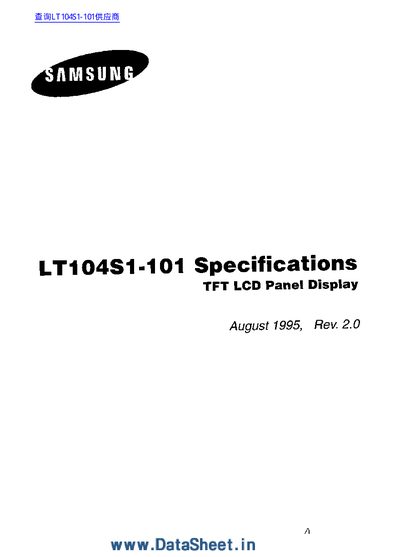

The Samsung LT104S1-101 is a color active matrix TFT liquid crystal display (LCD) module using amorphous silicon TFTs as switching devices. The module includes a TFT LCD panel, a driver circuit, and a backlight system, designed for applications such as notebook computers and display terminals.
| Display Area | 211.2(H) x 158.4(V) mm |
|---|---|
| Number of Dots | 800 x 600 pixel |
| Display Colors | 262,144 colors |
| Pixel Pitch | 0.264(H) x 0.264(W) mm |
| Viewing Angle | 6 O'clock |
| Display Mode | Normally white |
| Module Size | 264 (W) x 180 (H) x 9.5 (D) mm |
| Weight | 500 g |
| Contrast Ratio | 80 to 100 |
| White Luminance | 70 cd/m2 |
The display area has a 10.4-inch diagonal.
