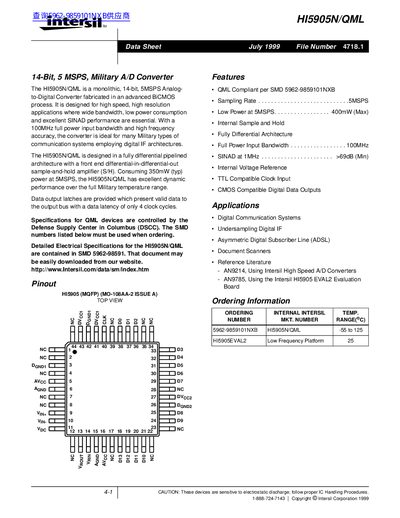

The HI5905N/QML is a monolithic, 14-bit, 5MSPS Analog- to-Digital Converter fabricated in an advanced BiCMOS process. It is designed for high speed, high resolution applications where wide bandwidth, low power consumption and excellent SINAD performance are essential.
The HI5905N/QML is a monolithic, 14-bit, 5MSPS Analog-to-Digital Converter fabricated in an advanced BICMOS process. It features a fully differential pipelined architecture with a front-end differential-in-differential-out sample-and-hold amplifier (S/H) and is designed for high-speed, high-resolution applications where wide bandwidth and low power consumption are essential.
| Resolution | 14-bit |
|---|---|
| Sampling Rate | 5 MSPS |
| Power Consumption (Max) | 400mW at 5MSPS |
| Full Power Input Bandwidth | 100MHz |
| SINAD (Min) | >69dB at 1MHz |
The device consumes a maximum of 400mW when operating at 5MSPS.
The converter has a full power input bandwidth of 100MHz.
The converter achieves a minimum SINAD of 59dB at 1MHz.
