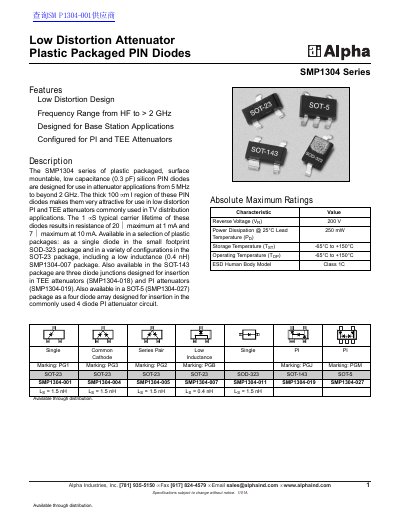

The SMP1304 series of plastic packaged, surface mountable, low capacitance (0.3 pF) silicon PIN diodes are designed for use in attenuator applications from 5 MHz to beyond 2 GHz.
The SMP1304 series consists of low distortion PIN diodes available in various plastic packages including SOD-323, SOT-23, SOT-143, and SOT-5. These devices are specifically designed for use in PI and TEE attenuators commonly found in TV distribution applications and base station equipment.
| Frequency Range | 5 MHz to beyond 2 GHz |
|---|---|
| Reverse Voltage (Va) | 200 V |
| Capacitance (Cr) | 0.30 pF |
| Resistance (Rg) @ 100 MHz, 1 mA | 40-50 Ohms |
| Forward Voltage (VF) | 0.8 V |
The absolute maximum reverse voltage rating is 200 V.
Power dissipation per lead is limited to 250 mW at 25°C.
The low capacitance is specified as 0.3 pF at 1 MHz and 30 V.
