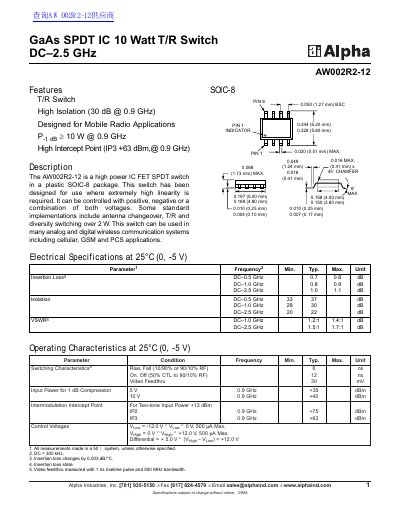

AW002R2-12 is a 10 Watt T/R switch from Alpha Industries, Inc. It features high isolation, high linearity and high intercept point, and is suitable for cellular, GSM and PCS applications.
The AW002R2-12 is a high power IC FET SPDT switch in a plastic SOIC-8 package designed for applications requiring extremely high linearity. It is suitable for mobile radio applications, including antenna changeover, T/R, and diversity switching in cellular, GSM, and PCS systems. The device supports control with positive, negative, or a combination of both voltages.
| Package Type | plastic SOIC-8 |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| Thermal Resistance Junction to Case | 85°C/W |
| Isolation (DC–0.5 GHz) | 33 to 37 dB |
| IP3 (0.9 GHz) | +63 dBm |
The operating temperature range is from -40°C to +85°C.
The maximum storage temperature is +150°C.
The typical isolation at 0.9 GHz is 30 dB.
