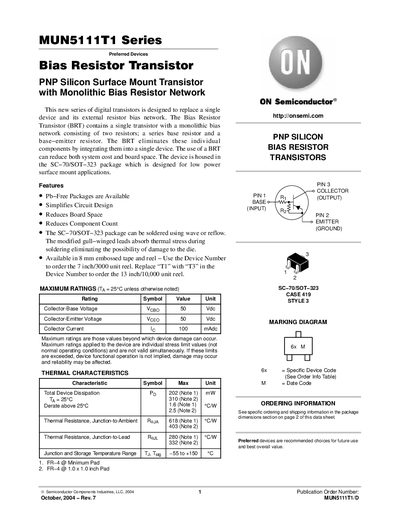

The MUN5111T1 series of bias resistor transistors is a new family of digital transistors designed to replace a single device and its external resistor bias network. The device is housed in the SC-70/SOT-323 package which is designed for low power surface mount applications.
The MUN5111T1 series consists of digital transistors designed to replace a single device and its external resistor bias network. These Bias Resistor Transistors (BRT) integrate a transistor with a monolithic bias network consisting of two resistors, reducing system cost and board space. The devices are housed in the SC-70/SOT-323 package, suitable for low power surface mount applications.
| Collector-Base Voltage | 50 Vdc |
|---|---|
| Collector-Emitter Voltage | 50 Vdc |
| Collector Current | 100 mA |
| Total Device Dissipation (Ta = 25°C) | 310 mW |
| Junction and Storage Temperature Range | -55 to +150 °C |
| Package Type | SC-70/SOT-323 |
The maximum collector current is 100 mA.
The maximum collector-base voltage is 50 V.
