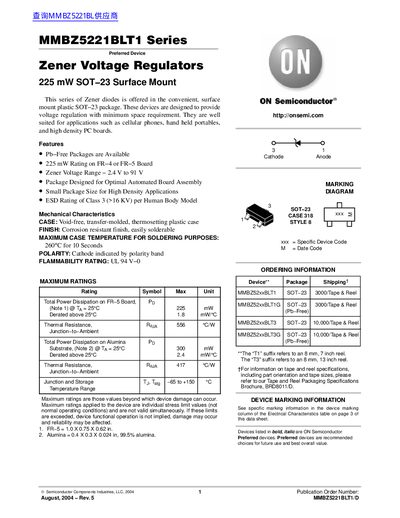

This datasheet provides the features and characteristics of the MMBZ5221BLT1 series preferred devices, including package, power, voltage range, etc.
The MMBZ5221BLT1 Series consists of Zener diodes offered in surface mount plastic SOT-23 packages. These devices are designed to provide voltage regulation with minimum space requirements, making them suitable for applications such as cellular phones, hand-held portables, and high-density PC boards. The series includes Pb-free package options and features an ESD rating of Class 3 (>16 KV) per the Human Body Model.
| Total Power Dissipation (FR-4 or FR-5 Board) | 225 mW |
|---|---|
| Zener Voltage Range | 2.4 V to 91 V |
| Package Type | SOT-23 |
The pinout is 1-Anode, 2-No Connection, and 3-Cathode.
Yes, Pb-free packages are available for this series.
The maximum case temperature for soldering is 260°C for 10 seconds.
