MURD620CT is a switchmode power rectifier produced by Semiconductor Components Industries, LLC. It adopts DPAK surface mount package, features ultrafast 35 nanosecond recovery time, low forward voltage drop and low leakage.

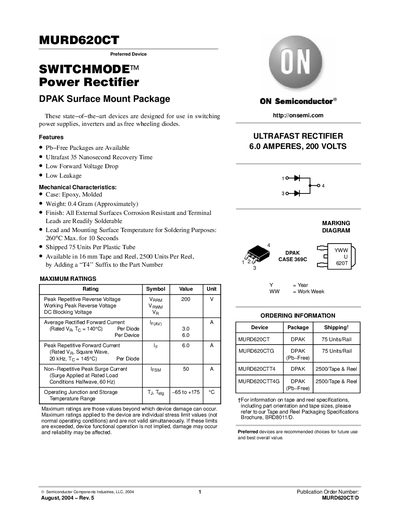

This document is a technical datasheet for the MURD620CT, an ultrafast power rectifier designed for use in switching power supplies, inverters, and as free-wheeling diodes. The device features a DPAK surface mount package with Pb-free options available.
The datasheet provides comprehensive electrical characteristics, including maximum ratings such as 6.0 amperes average forward current and 200 volts peak repetitive reverse voltage. It also includes thermal resistance data, typical performance curves for forward voltage and leakage current, and detailed mechanical dimensions for the DPAK package.
| Average Rectified Forward Current (Per Device) | 6.0 A |
|---|---|
| Peak Repetitive Reverse Voltage | 200 V |
| Operating Junction and Storage Temperature Range | -65 to +175 °C |
| Package Type | DPAK Surface Mount Package |
The maximum average rectified forward current per device is 6.0 A.
Yes, the MURD620CTG and MURD620CTT4G variants are available in Pb-free packages.
The ultrafast rectifier has a 35 nanosecond recovery time.
