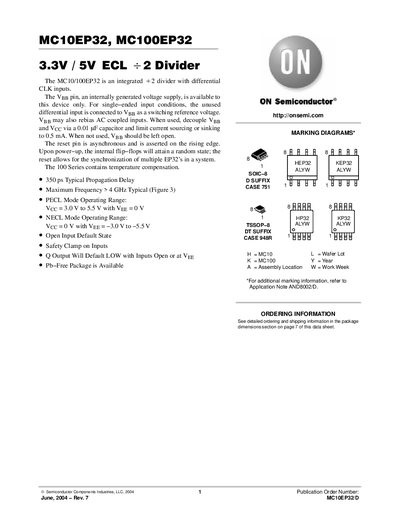

The MC10/100EP32 is an integrated ÷2 divider with differential CLK inputs. It has a typical propagation delay of 350 ps and a maximum frequency greater than 4 GHz. It can operate in a voltage range of 3.0 V to 5.5 V and features open input default state and safety input clamp.
The MC10EP32 and MC100EP32 are integrated +2 divider devices designed for high-speed applications. They feature differential clock inputs and an internally generated voltage supply (Vpp) available only to this device. The reset pin is asynchronous and asserted on the rising edge, allowing for the synchronization of multiple EP32s in a system.
| Propagation Delay (Typical) | 350 ps |
|---|---|
| Maximum Frequency (Typical) | > 4 GHz |
| Operating Temperature Range | -40 to +85 °C |
| Storage Temperature Range | -65 to +150 °C |
| Internal Input Pulldown Resistor | 75 kΩ |
The Vpp pin is an internally generated voltage supply available to this device only, used for single-ended input conditions or to rebias AC coupled inputs.
The reset pin is asynchronous and is asserted on the rising edge of the clock signal.
