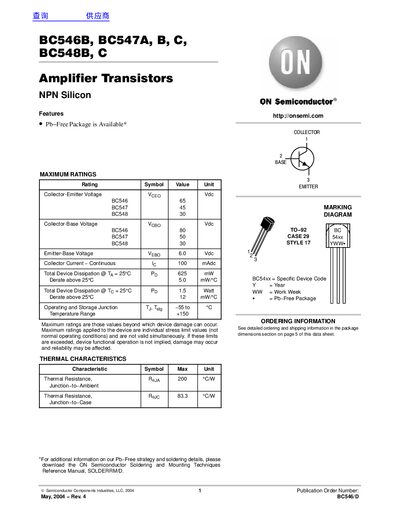

Datasheet for ON Semiconductor BC546B, BC547A, BC547B, BC547C, BC548B, and BC548C NPN silicon transistors, including electrical and thermal specifications.
This datasheet provides detailed electrical, thermal, and mechanical specifications for the ON Semiconductor BC546B, BC547A, BC547B, BC547C, BC548B, and BC548C NPN silicon amplifier transistors. It includes maximum ratings, characteristic curves, small‑signal parameters, and typical performance graphs.
The document also lists ordering information, package dimensions for the TO‑92 (TO‑226) style 17 case, and legal notices. It is intended for designers and engineers who need precise data for circuit design and component selection.
| Thermal Resistance, Junction‑to‑Ambient (RJA) | 200 °C/W |
|---|---|
| Thermal Resistance, Junction‑to‑Case (RJC) | 83.3 °C/W |
| Maximum Collector Current (IC) | 100 mA |
