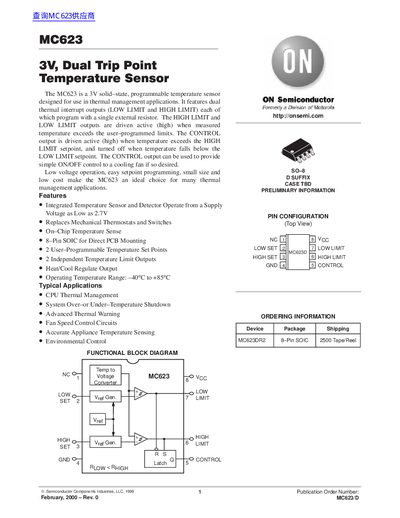

The MC623 is a 3V solid-state, programmable temperature sensor designed for use in thermal management applications. It features dual thermal interrupt outputs (LOW LIMIT and HIGH LIMIT) each of which program with a single external resistor. The HIGH LIMIT and LOW LIMIT outputs are driven active (high) when measured temperature exceeds the user-programmed limits. The CONTROL output is driven active (high) when temperature exceeds the HIGH LIMIT setpoint, and turned off when temperature falls below the LOW LIMIT setpoint. The CONTROL output can be used to provide simple ON/OFF control to a cooling fan if so desired. Low voltage operation, easy setpoint programming, small size and low cost make the MC623 an ideal choice for many thermal management applications.
The MC623 is a solid-state, programmable temperature sensor designed for thermal management applications. It features dual thermal interrupt outputs (LOW LIMIT and HIGH LIMIT) that can be programmed using a single external resistor each. The device operates from a supply voltage as low as 2.7V and replaces mechanical thermostats and switches.
| Operating Temperature Range | -40°C to +125°C |
|---|---|
| Package Type | 8-Pin SOIC |
| Absolute Accuracy | ±3°C |
The device can operate from a supply voltage as low as 2.7V.
It features two user-programmable temperature set points.
The device comes in an 8-Pin SOIC package for direct PCB mounting.
