This document describes the features and characteristics of the 2 Amp Super Fast Recovery Silicon Rectifier models ER2A to ER2M, suitable for surface mount applications. It includes extremely low thermal resistance, easy pick and place, and high temperature soldering capabilities for efficient operation.

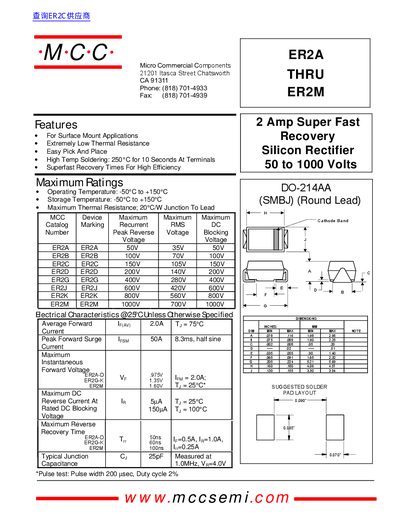

This document provides technical specifications for the MCC ER2A through ER2M series of silicon rectifiers designed for surface mount applications. The series offers extremely low thermal resistance and superfast recovery times suitable for high efficiency circuits.
| Current | 2 Amp |
|---|---|
| Voltage Range | 50 to 1000 Volts |
| Operating Temperature | -50°C to +150°C |
| Thermal Resistance | 20°C/W |
| Package Type | DO-214AA (SMBJ) |
The maximum operating temperature is +150°C.
The device can withstand high-temperature soldering at 250°C for 10 seconds at the terminals.
The operating temperature ranges from -50°C to +150°C.
The maximum thermal resistance is 20°C/W from junction to lead.
