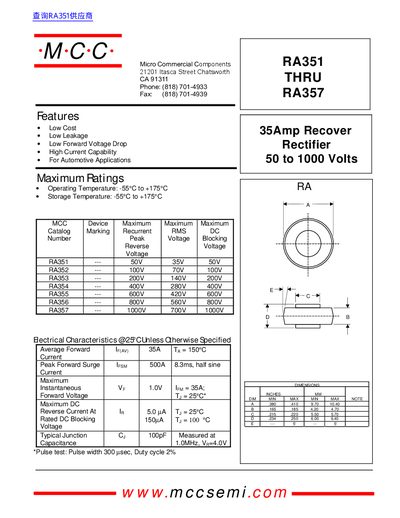

Micro Commercial Components RA351-RA357 35Amp Recover Rectifier Datasheet

The RA351 series 35A recover rectifiers feature low cost, low leakage, low forward voltage drop, high current capability and are suitable for automotive applications.

Brand: MCC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 88 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: 42A9C3EF4914A012D19701981F77BCDB
PDF: Micro Commercial Components RA351-RA357 35Amp Recover Rectifier Datasheet PDF

About this manual

This datasheet covers the RA351 through RA357 series of 35Amp Recover Rectifiers manufactured by Micro Commercial Components. These devices are designed for automotive applications and feature low cost, low leakage, and low forward voltage drop.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Dimensions
Typical Forward Characteristics
Forward Derating Curve
Junction Capacitance

Specifications

Average Forward Current	35A
Peak Forward Surge Current	500A
Maximum Instantaneous Forward Voltage	1.0V
Maximum DC Reverse Current	5.0 nA
Operating Temperature	-55°C to +175°C
Storage Temperature	-55°C to +175°C

Frequently asked questions

What is the operating temperature range for these rectifiers?

The devices are rated to operate between -55°C and +175°C.

How much average forward current can the RA351 model handle?

The RA351 is rated for an average forward current of 35A.

What is the maximum peak forward surge current rating?

The device can withstand a peak forward surge current of 500A for 8.3ms.
