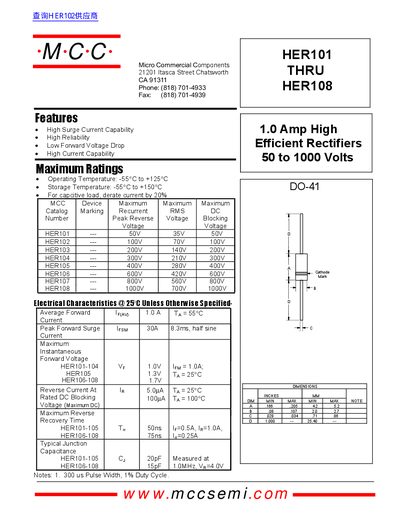

HER101 THRU HER108 are 1.0 Amp High Efficient Rectifiers with ratings from 50 to 1000 Volts. Products feature high surge current capability, high reliability, low forward voltage drop and high current capability.
This document provides a technical overview of the MCC HER101 through HER108 series of 1.0 Amp High Efficient Rectifiers. These devices feature high surge current capability, low forward voltage drop, and high reliability, suitable for operating temperatures between -55°C and +125°C.
| Operating Temperature Range | -55°C to +125°C |
|---|---|
| Storage Temperature Range | -55°C to +150°C |
| Average Forward Current | 1.0A |
| Peak Forward Surge Current | 30A (8.3ms, half sine) |
| Maximum Instantaneous Forward Voltage (HER105) | 1.3V |
| Reverse Current (Rated DC Blocking Voltage) | 5.0µA |
The maximum operating temperature is +125°C.
The devices can operate between -55°C and +125°C.
You must derate the current by 20% for capacitive loads.
The maximum instantaneous forward surge current is 30A.
