BC817-16 is a NPN small signal transistor from MCC, with a maximum collector-emitter voltage of 45V, 5V emitter-base voltage, 800mA collector current, 1000mA peak collector current, 1000mA peak emitter current and 310mW power dissipation.

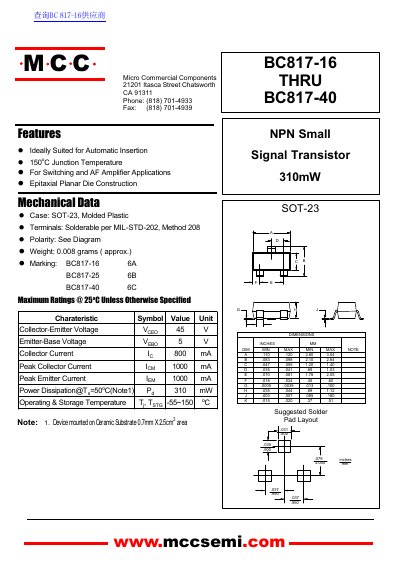

This document is a datasheet for the Micro Commercial Components NPN small signal transistors, specifically the BC817 series ranging from part number BC817-16 to BC817-40. The devices are designed for switching and AF amplifier applications and feature an epitaxial planar die construction in a SOT-23 molded plastic package.
| Package Type | SOT-23, Molded Plastic |
|---|---|
| Collector-Emitter Voltage | 45 V |
| Collector Current | 800 mA |
| Power Dissipation | 310 mW |
| Operating Temperature | -55~150 °C |
| Thermal Resistance Junction to Substrate | 320 K/W |
| Thermal Resistance Junction to Ambient | 400 K/W |
The maximum junction temperature is 150°C.
The approximate weight of the device is 0.008 grams.
