This PDF document describes the features and characteristics of the 2 Watt Zener Diode BZX2C3V6 to BZX2C200V, including wide voltage range, glass package, high temperature soldering, etc.

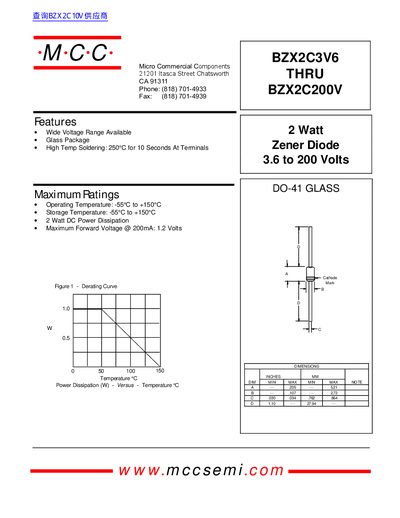

This document is a datasheet for the Micro Commercial Components (MCC) BZX2C series of 2Watt Zener diodes. The product is available in a glass package (DO-41) and offers a wide voltage range from 3.6V to 200V. Key features include high-temperature soldering capability up to 250°C for 10 seconds and an operating temperature range of -55°C to +150°C.
| Power Dissipation | 2 Watt DC Power Dissipation |
|---|---|
| Operating Temperature | -55°C to +150°C |
| Storage Temperature | -55°C to +150°C |
| Maximum Forward Voltage | 1.2 Volts @ 200mA |
| Package Type | DO-41 GLASS |
The series is available from 3.6V to 200V.
The diodes can withstand 250°C for 10 seconds at the terminals.
