This document describes the characteristics of BZT52C2V4S to BZT52C39S 200mW Zener Diodes, including power dissipation, zener voltage, forward voltage, peak forward surge current, etc.

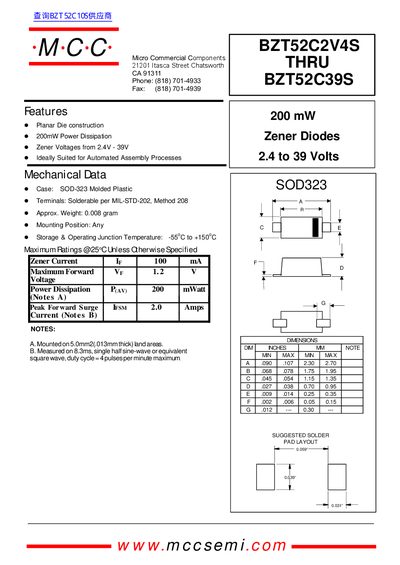

This document is a datasheet for the MCC BZT52C series of Zener diodes, featuring planar die construction and a power dissipation of 200mW. The series includes Zener voltages ranging from 2.4V to 39V, making them ideally suited for automated assembly processes. The devices are housed in an SOD-323 molded plastic case with solderable terminals.
| Power Dissipation | 200 mW |
|---|---|
| Zener Voltages | 2.4V - 39V |
| Case Style | SOD-323 |
| Operating Temperature | -55°C to +150°C |
| Maximum Zener Current | 100 mA |
| Maximum Forward Voltage | 1.2 V |
| Peak Forward Surge Current | 2.0 Amps |
The type numbers listed have a standard tolerance on the nominal zener voltage of ±5%.
The maximum operating junction temperature is +150°C.
