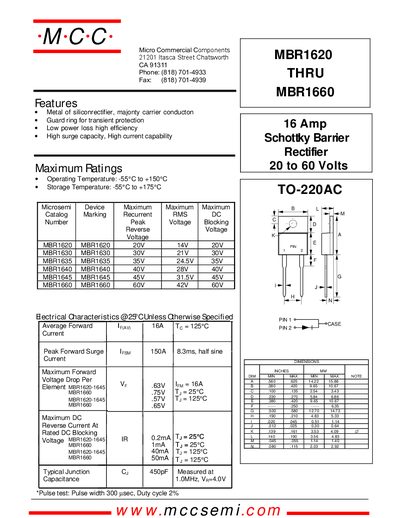

MCC MBR1620 THRU MBR1660 Data Sheet

This data sheet mainly provides the maximum ratings, package size, external dimensions, operating temperature, storage temperature, etc. of MBR1620 to MBR1660 Schottky diodes

Brand: MCC
Category: RECTIFIER
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 92 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: BFC164AA7142014CF1157FAB44075C3E
PDF: MCC MBR1620 THRU MBR1660 Data Sheet PDF

About this manual

This document provides technical specifications for the MCC Semiconductor MBR1620 through MBR1660 series of 16 Amp Schottky Barrier Rectifiers. The devices feature a majority carrier conduction structure with guard rings for transient protection, offering low power loss and high surge capacity.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Typical Junction Capacitance
Package Dimensions

Specifications

Average Forward Current (I F(AV))	16A
Peak Forward Surge Current (I FSM)	150A
Operating Temperature Range	-55°C to +150 °C
Storage Temperature Range	-55°C to +175 °C

Frequently asked questions

What is the operating temperature range for this rectifier?

The device operates from -55°C to +150°C.

What is the maximum peak forward surge current for these rectifiers?

The maximum peak forward surge current is 150A.
