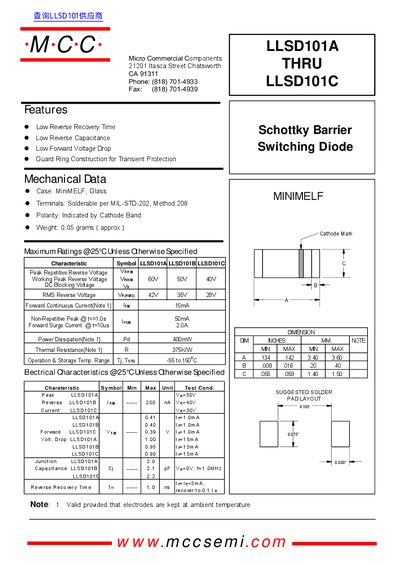

Micro Commercial Components LLSD101A THRU LLSD101C Schottky Barrier Switching Diode Datasheet

This is a datasheet about LLSD101A THRU LLSD101C Schottky Barrier Switching Diode. It includes maximum ratings, mechanical data, electrical characteristics etc.

Brand: MCC
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 357 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: 5EC2E48369E1B6AE34FCAADF38393361
PDF: Micro Commercial Components LLSD101A THRU LLSD101C Schottky Barrier Switching Diode Datasheet PDF

About this manual

This document is a datasheet for the Micro Commercial Components (MCC) LLSD101A, LLSD101B, and LLSD101C Schottky Barrier Switching Diodes. The devices are housed in a MiniMELF glass case and feature guard ring construction for transient protection. Key characteristics include low reverse recovery time, low reverse capacitance, and low forward voltage drop.

What's inside

Features
Mechanical Data
Maximum Ratings
Electrical Characteristics
Typical Forward Characteristic
Typical Junction Capacitance

Specifications

Case	MiniMELF, Glass
Forward Continuous Current	16mA
Forward Surge Current	2.0A
Power Dissipation	400mW
Operation & Storage Temp. Range	-55 to 150°C
Reverse Recovery Time	1.0 ns

Frequently asked questions

What is the case type for the LLSD101A through LLSD101C diodes?

The case type is MiniMELF, Glass.

What is the forward continuous current rating for these diodes?

The forward continuous current rating is 16mA.
