This product is a 410mW Zener diode with a maximum current of 100mA, a maximum forward voltage of 1.2V, a maximum reverse leakage current of 2.0A, and a working temperature range of -55oC to +150oC

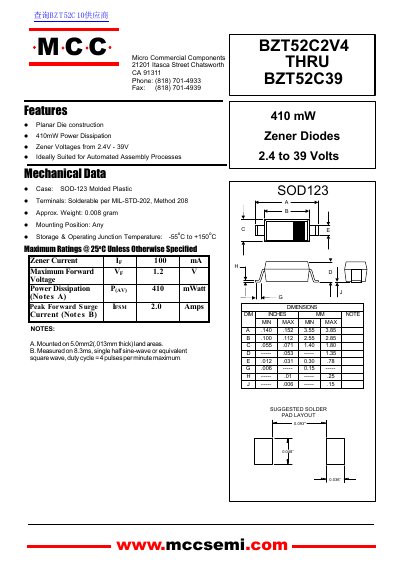

This document is a technical datasheet for the MCC (Micro Commercial Components) BZT52C series of Zener diodes. The devices feature planar die construction and are available with zener voltages ranging from 2.4V to 39V, making them ideally suited for automated assembly processes.
| Power Dissipation | 410 mW |
|---|---|
| Zener Voltages Range | 2.4V - 39V |
| Package Case | SOD-123 Molded Plastic |
| Storage Temperature | -55°C to +150°C |
| Maximum Zener Current (Ip) | 100 mA |
| Standard Tolerance | ±5% |
The type numbers listed have a standard tolerance on the nominal zener voltage of ±5%.
The maximum power dissipation is 410 mW.
The maximum operating junction temperature is +150°C.
