This document describes the features of the RL201GP to RL207GP series 2 Amp glass passivated rectifiers, such as low cost, low leakage, low forward voltage drop, high current capability, etc.

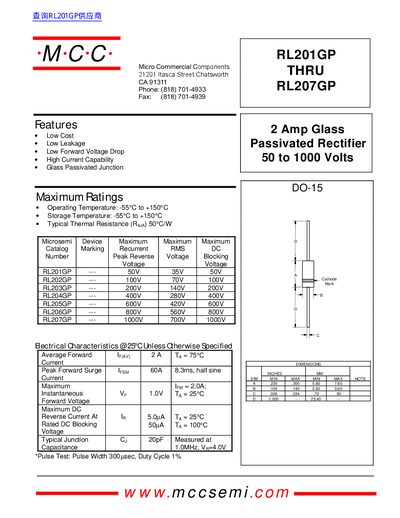

This document provides technical specifications and electrical characteristics for the RL201GP through RL207GP series of 2 Amp Glass Passivated Rectifiers manufactured by Micro Commercial Components. The devices are designed with low cost, low leakage, and high current capability features.
The datasheet details maximum ratings including operating temperatures from -55°C to +150°C and storage temperatures up to +150°C. It lists specific electrical parameters for each model in the series, ranging from 50V (RL201GP) to 1000V (RL207GP), along with typical forward voltage drops and reverse currents.
| Average Forward Current | 2A |
|---|---|
| Peak Forward Surge Current | 60A | 8.3ms, half sine |
| Operating Temperature Range | -55°C to +150°C |
| Storage Temperature Range | -55°C to +150°C |
| Package Type | DO-15 |
The peak reverse voltage for RL207GP is 1000V.
The typical thermal resistance (Rea) is 50°C/W.
The maximum DC reverse current is 5.0nA at Ta = 25°C.
