The PG150R to PG158R are glass-passivated junction fast switching rectifiers with a voltage range of 50 to 800 volts and a current rating of 1.5 amperes. They feature a plastic package with UL Flammability Classification 94V-O, no thermal runaway at 55°C, and compliance with environmental standards. These rectifiers are designed for high efficiency and come in a DO-15 package with axial leads.

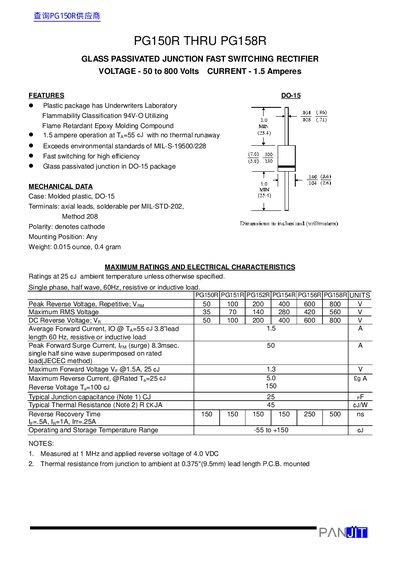

This document provides technical specifications for the PANJIT PG150R through PG158R series of glass passivated junction fast switching rectifiers. These components are available in DO-15 plastic packages and feature Underwriters Laboratory Flammability Classification 94V-0.
| Package Type | DO-15 |
|---|---|
| Reverse Recovery Time | 150 to 500 ns |
The typical thermal resistance is 45 degrees Celsius per watt when mounted on a PCB with 0.375-inch leads.
