PG100R THRU PG108R is a glass passivated junction fast switching rectifier with a rated voltage of 50 to 800 volts and a rated current of 1.0 ampere.

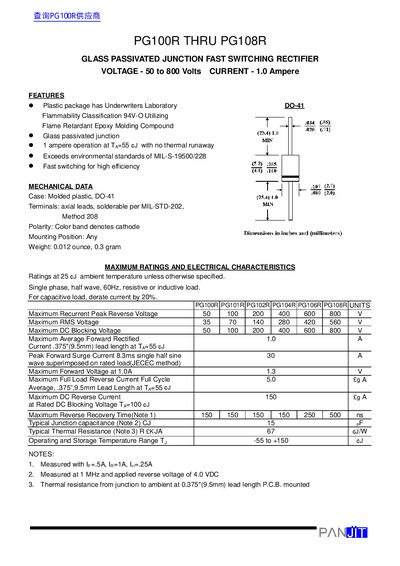

This document provides a datasheet for the PANJIT PG100R through PG108R series of glass passivated junction fast switching rectifiers. These components are designed with plastic packages featuring Underwriters Laboratory Flammability Classification 94V-0 and utilize flame retardant epoxy molding compound.
| Voltage Range | 50 to 800 Volts |
|---|---|
| Current Rating | 1.0 Ampere |
| Package Type | Molded plastic, DO-41 |
| Maximum Reverse Recovery Time (PG100R-PG104R) | 150 ns |
For capacitive loads, the current rating must be derated by 20%.
The maximum forward voltage at 1.0A is 1.3 V.
The operating and storage temperature range is -55 to +150 tJ.
