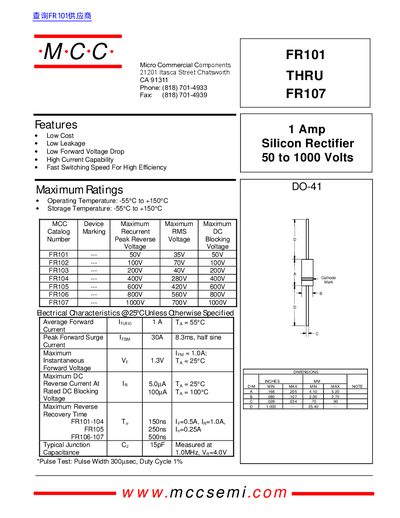

FR101 THRU FR107 1 Amp Silicon Rectifier 50 to 1000 Volts is a 1 Amp silicon rectifier from MCC company. It features low cost, low leakage, low voltage drop, high current, and high efficiency.
This document provides technical specifications for the MCC FR101 through FR107 series of silicon rectifiers. These components are designed with low cost and low leakage in mind, featuring a 1 Amp average forward current capability.
The datasheet details maximum ratings including operating temperatures from -55°C to +150°C and storage temperatures up to +150°C. It also includes electrical characteristics such as peak reverse voltage ranging from 35V to 700V, along with typical junction capacitance and recovery time data.
| Average Forward Current | 1A |
|---|---|
| Peak Forward Surge Current | 30A |
| Maximum Instantaneous Forward Voltage | 1.3V |
| Operating Temperature Range | -55°C to +150°C |
| Storage Temperature Range | -55°C to +150°C |
The maximum peak reverse voltage for FR107 is 1000V.
The maximum reverse recovery time (Tr) for FR106-107 is 500ns.
