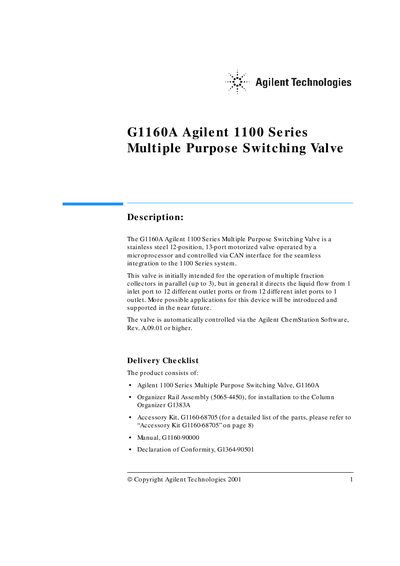

The G1160A Agilent 1100 Series Multiple Purpose Switching Valve is a stainless steel 12-position, 13-port motorized valve operated by a microprocessor and controlled via CAN interface for the seamless integration to the 1100 Series system. This valve is initially intended for the operation of multiple fraction collectors in parallel (up to 3), but in general it directs the liquid flow from 1 inlet port to 12 different outlet ports or from 12 different inlet ports to 1 outlet.
The document describes the Agilent G1160A Multiple Purpose Switching Valve, a stainless steel motorized valve designed for integration with the 1100 Series system. It details physical specifications, installation procedures on the Column Organizer or bench space, and connection methods via CAN interfaces to modules like the Preparative Pump and Fraction Collector.
| Weight | 1.8kg |
|---|---|
| Line voltage | 24 VAC, 5% |
The valve is automatically controlled via the Agilent Chem Station Software, Rev. A.09.01 or higher.
Place the front of the Valve above the G1383A Column Organizer base plate so that any eventual leakage would be collected by the base plate.
Early failures are mainly caused by abrasive particles in the sample and/or mobile phase or crystallization of buffer solutions.
Follow the procedures and instructions given on the Internet.
