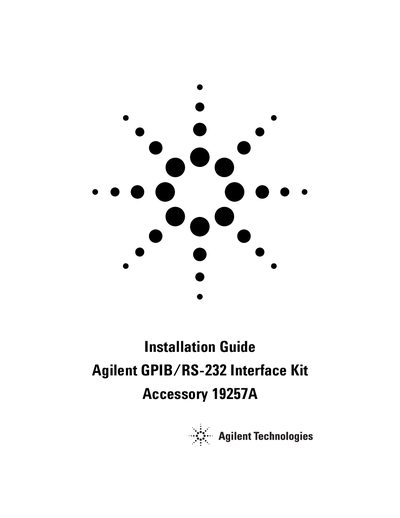

Agilent 19257A GPIB/RS-232 Interface Kit Installation Guide

This document is an installation guide for the Agilent GPIB/RS-232 Interface Kit Accessory 19257A. It provides safety information and precautions for using the product.

Brand: Agilent
Document type: Installation Guide
Language: English
Pages: 12
File format: PDF
File size: 334 KB
Published: 08 June, 2012
Updated: 29 September, 2023
MD5 checksum: 74C339540FD7A97208B533F37237C2C8
PDF: Agilent 19257A GPIB/RS-232 Interface Kit Installation Guide PDF

About this manual

This guide provides step-by-step instructions for installing the Agilent 19257A GPIB/RS-232 Interface Kit on compatible Gas Chromatograph (GC) instruments. It details safety precautions, such as shutting off hydrogen gas supplies and unplugging power before working on the instrument.

What's inside

Safety Information
Installing a Communications Interface Board
Install the Board
Configure Your Interface Card
GPIB Address Configuration

Frequently asked questions

What safety precautions are required before working on the instrument?

You must shut off all hydrogen gas to detectors and unplug the power cord before removing covers.

What type of protection is required when installing the interface board?

You must ground yourself by connecting a grounded wrist strap, part no. 9300-0969 (large) or part no. 9300-0970 (small), to a suitable ground.

What is the default baud rate setting for the GPIB configuration?

The seventh toggle should be set to 19.2K baud rate unless otherwise specified by the host computer's documentation.
