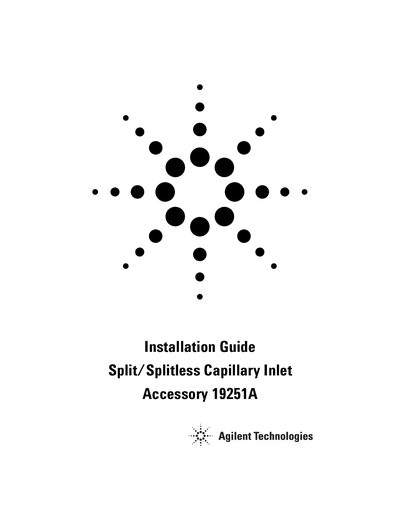

This document is the installation guide for Agilent Technologies 19251A Agilent Technologies Split/Splitless Capillary Inlet, which introduces the features and characteristics of the product, the use method, etc.
This document serves as an installation guide for the Agilent Technologies Accessory 19251A, specifically designed for use with Gas Chromatographs (GC). It outlines safety precautions regarding hydrogen flammability and refractory ceramic fiber insulation before beginning the procedure.
The guide details a step-by-step process for preparing the instrument by removing covers and panels. It then instructs on installing the inlet from the top of the oven, securing it with M4 screws, and placing the flow module assembly onto threaded studs.
You must wear long sleeves, gloves, safety glasses, and a disposable dust/mist respirator.
Two screws are used to remove the left side panel along its bottom edge.
The inlet is secured with two M4 screws from the top of the oven.
