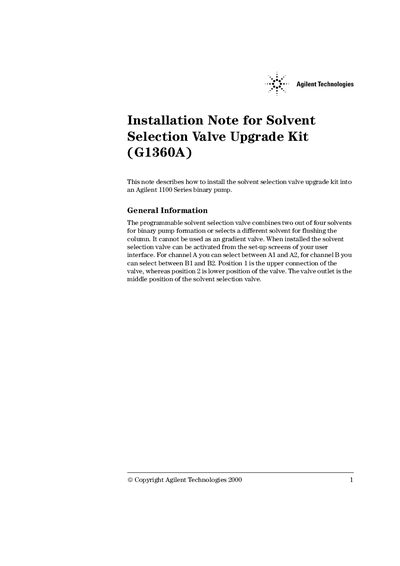

This note describes how to install the solvent selection valve upgrade kit into an Agilent 1100 Series binary pump. The programmable solvent selection valve combines two out of four solvents for binary pump formation or selects a different solvent for flushing the column. It cannot be used as an gradient valve. When installed the solvent selection valve can be activated from the set-up screens of your user interface.
This document describes the procedure to install a solvent selection valve upgrade kit (Part Number G1360A) onto an Agilent 1100 Series binary pump. The programmable solvent selection valve allows for combining two of four solvents or selecting different solvents for column flushing, though it cannot be used as a gradient valve.
This note describes how to install the solvent selection valve upgrade kit into an Agilent 1100 Series binary pump.
You need a Pozidriv #1 screwdriver and wrenches of sizes 1/4 inch, 14 mm, 7 mm, and 5 mm.
The delivery checklist shows that two solvent selection valves are included with part number G1312-60000.
You must unplug the power cord because the security lever prevents removing the cover while line power is connected.
