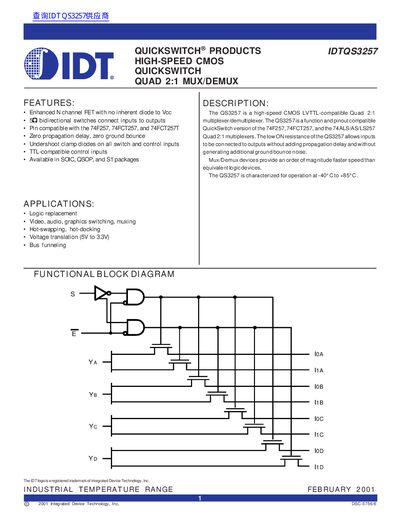

The IDTQS3257 is a high-speed CMOS LVTTL-compatible quad 2:1 multiplexer/demultiplexer with zero propagation delay and zero ground bounce noise. It can be used as a logic replacement for video, audio, graphics switching and muxing, as well as hot-swapping and voltage translation applications.
The IDTQS3257 is a high-speed CMOS LVTTL-compatible quad 2:1 multiplexer/demultiplexer designed for logic replacement, video/audio switching, and voltage translation. It features enhanced N-channel FETs with no inherent diode, zero propagation delay, and undershoot clamp diodes to minimize ground bounce. The device is pin-compatible with 74F257 and 74FCT257 series and operates in an industrial temperature range from -40°C to +85°C. It is available in SOIC, QSOP, and S1 packages.
| Supply Voltage | 0.5 to +7 V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Switch ON Resistance | 5 to 15 Ω |
| Package Types | SOIC, QSOP, S1 |
The device operates from -40°C to +85°C.
It is available in SOIC, QSOP, and S1 packages.
