This document describes the features and characteristics of the MU R7005 to MU R7060 series super fast recovery rectifiers, including operating temperature, storage temperature, maximum recurrent peak reverse voltage, maximum RMS voltage, maximum DC blocking voltage, etc. It also includes electrical characteristics such as average forward current, peak forward surge current, maximum instantaneous forward voltage, maximum DC reverse current at rated DC blocking voltage, etc.

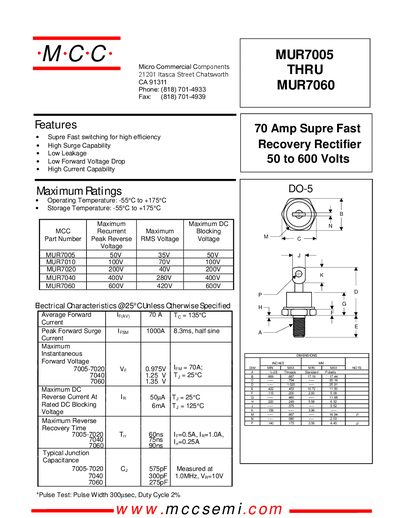

This document is a technical datasheet for the MCC Supre Fast recovery rectifier series, specifically models MUR7005 through MUR7060. The components are designed for high efficiency applications featuring fast switching, low leakage current, and low forward voltage drop.
The datasheet provides detailed electrical characteristics, maximum ratings, and typical performance curves including forward characteristics, junction capacitance, reverse characteristics, and peak forward surge current versus cycle count.
| Recovery Type | Supre Fast Recovery Rectifier |
|---|---|
| Operating Temperature Range | -55°C to +175°C |
| Storage Temperature Range | -55°C to +175°C |
| Maximum Forward Current (MUR7060) | 70A |
The devices can operate between -55°C and +175°C.
