The RS601-RS607 is a 6 amp single phase bridge rectifier with a rated voltage of 50-1000V. It features low leakage, low forward voltage, any mounting position, silver plated copper leads, and a 200 amp surge overload rating.

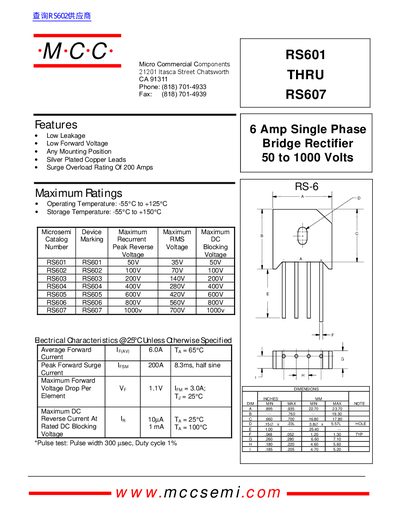

This document provides technical specifications for the RS601 through RS607 series of 6 Amp single-phase bridge rectifiers. Key features include low leakage current, low forward voltage drop, and a surge overload rating of 200 amps.
The datasheet details maximum ratings such as operating temperatures from -55°C to +125°C and provides electrical characteristics including average forward current, peak forward surge current, and reverse current at various temperatures. It also includes typical forward and reverse characteristic curves along with physical dimensions in inches and millimeters.
| Average Forward Current | 6.0A |
|---|---|
| Peak Forward Surge Current | 200A |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
The devices have a stated surge overload rating of 200 Amps.
The unit operates between -55°C and +125°C.
