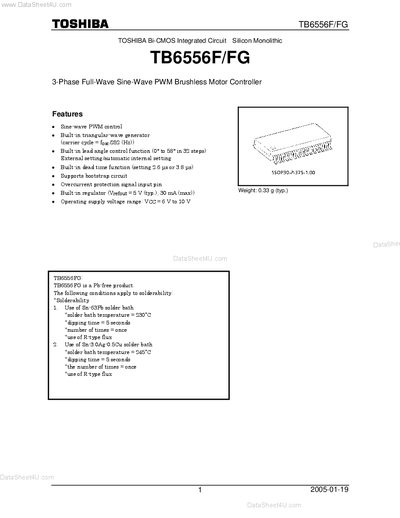

TB6556F/FG 3-Phase Full-Wave Sine-Wave PWM Brushless Motor Controller is a PWM controller produced by Toshiba company. It has a built-in triangular wave generator, a built-in leading angle control function and a built-in dead time function. Its operating voltage range is 6V to 10V, and its weight is 0.33g. This product is manufactured using lead-free technology.
The Toshiba TB6556F/FG is an integrated circuit silicon monolithic designed as a 3-Phase Full-Wave Sine-Wave PWM Brushless Motor Controller. Key features include built-in triangular-wave generator, lead angle control function with external or automatic internal setting, and a built-in dead time function.
| Supply voltage (Vcc) | 6 V to 10 V |
|---|---|
| Reference voltage output (Vrefout) | 5 V (typ.) |
| Maximum reference current | 30 mA |
| Operating temperature range | -30°C to 115°C |
| Crystal oscillation frequency | 2 MHz to 8 MHz |
The device operates with a supply voltage between 6 V and 10 V.
The built-in lead angle control offers 32 steps ranging from 0° to 58°.
The maximum rated power dissipation is 1.5 W.
