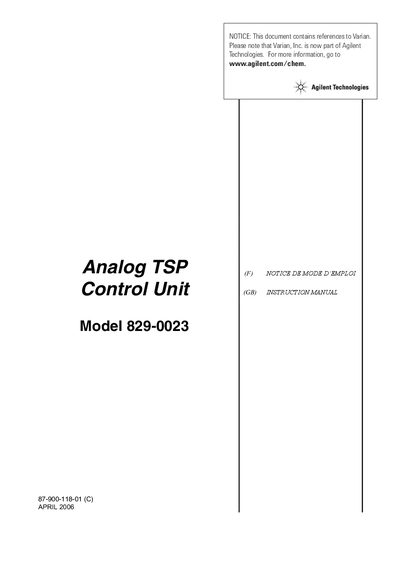

Agilent Technologies Analog TSP Control Unit Model 829-0023 User Manual

This document is an instruction manual for the Varian Analog TSP Control Unit Model 829-0023 vacuum technologies. It provides information on pre-use precautions, safety guidelines, and operating instructions.

Brand: Agilent
Document type: User Manual
Language: French
Pages: 14
File format: PDF
File size: 1.1 MB
Published: 07 June, 2012
Updated: 29 September, 2023
MD5 checksum: 83BEC5168D273075EC8A5439C21EAED0
PDF: Agilent Technologies Analog TSP Control Unit Model 829-0023 User Manual PDF

About this manual

The document serves as an instruction manual for the Agilent Technologies Analog TSP Control Unit (Model 829-0023), originally manufactured by Varian Vacuum Technologies. It details safety precautions, installation requirements including rack mounting and environmental conditions, and operational procedures for controlling sublimation currents. This manual is written in French.

What's inside

Indications Generales
Preparation for Installation
Installation
Storage
Specifications Techniques
Utilisation
Mise au rebut

Specifications

Voltage	230 Vac +10% each phase
Power	600 VA max
Output Voltage	12 Vac max
Output Current	50 A max

Frequently asked questions

What are the environmental requirements for storing the controller?

The storage temperature must be between -20 °C and +70 °C with relative humidity of 0-95% without condensation.

What are the storage temperature and humidity requirements for the controller?

The unit must be stored at temperatures between -20 °C and +70 °C with a relative humidity of 0 to 95% without condensation.

What is the maximum operational current rating for the controller?

The output current is limited to a maximum of 50 A.
