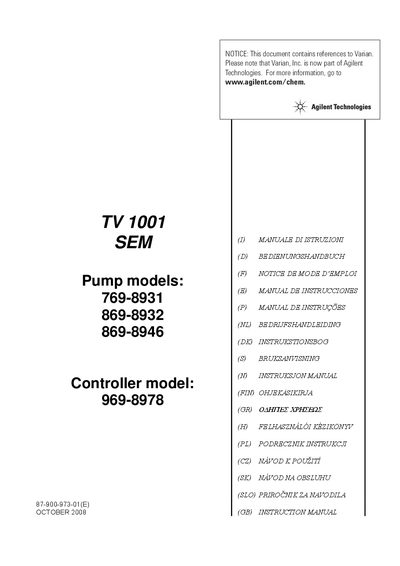

This document provides information about the models and technical specifications of the Vacuum Technologies TV 1001 SEM Pump and Controller.
The document serves as a comprehensive user guide for the Varian (now Agilent) TV 1001 SEM series of turbomolecular pumps. It covers safety precautions, environmental conditions for storage and operation, and detailed installation procedures including vibration isolation, purge valve setup, and controller mounting.
Technical specifications are provided alongside instructions on interconnections, RS232/RS485 communication protocols, and the use of accessories such as water cooling kits and vent devices. The manual also includes a troubleshooting section to assist users in diagnosing common issues like leaks, noise, or failure to reach full speed. This manual is written in Italian.
| Maximum rotational speed | 38000 rpm max |
|---|---|
| Operating temperature range | +5°C to +35°C |
| Relative humidity limit | 0 - 95% (non condensante) |
| Maximum operating pressure | 2 bar above atmospheric |
The pump is suitable for pumping any type of gas or gaseous compound but is not designed for liquids or solid particles.
The recommended storage time is 10 months from the shipping date; if longer, the pump must be returned to the factory.
The customer must always start the turbomolecular pumps using the Soft-Start mode when they are received and put into operation for the first time.
