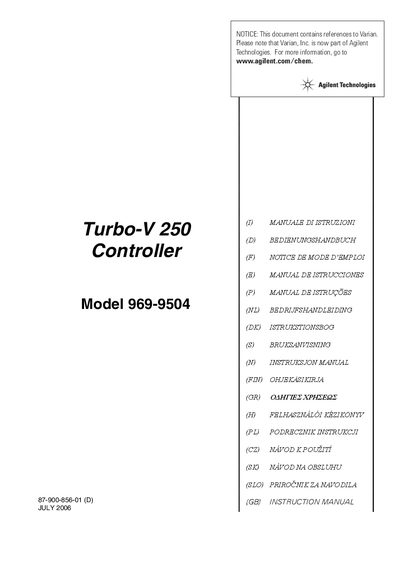

Agilent Turbo-V 250 Controller Model 969-9504 User Manual

This manual describes the use of Agilent Technologies Turbo-V 250 vacuum controller

Brand: Agilent
Document type: User Manual
Language: English
Pages: 91
File format: PDF
File size: 10.4 MB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 9138738BE6F2D7F60BC635C532D8CFB8
PDF: Agilent Turbo-V 250 Controller Model 969-9504 User Manual PDF

About this manual

The document is a user guide for the Agilent Technologies (formerly Varian) Model 969-9504 Turbo-V 250 Controller. It details the setup, operation, and maintenance procedures for this frequency converter used to drive Turbo-V 250 series vacuum pumps.

What's inside

General Information
Preparation for Installation
Storage Conditions
Power Supply Selection
Startup Procedures
Monitor Mode
Program Mode
Remote Control Operation
Pump Shutdown
Technical Specifications

Specifications

Operating Temperature	-20 °C to +70 °C
Relative Humidity	0 - 95% (non condensante)
Default Power Supply	120 Vac

Frequently asked questions

What is the default power supply voltage for this controller?

The Model 969-9504 arrives pre-configured for a 120 Vac power supply.

What are the storage temperature limits?

The controller must be stored between -20 °C and +70 °C.
