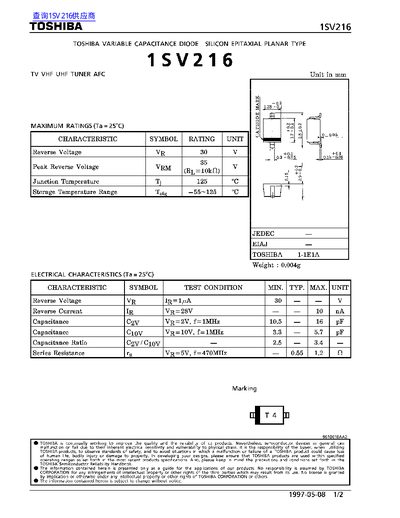

Toshiba 1SV216 Variable Capacitance Diode Datasheet

About this manual

This document is a technical datasheet for the TOSHIBA 1SV216, a silicon epitaxial planar type variable capacitance diode. It provides specifications suitable for use in TV VHF UHF tuner AFC units.

The datasheet lists maximum ratings including a reverse voltage of 30V and a junction temperature of 125°C. Electrical characteristics define the device's behavior under specific test conditions, such as capacitance values at different voltages and frequencies.

What's inside

• Maximum Ratings
• Electrical Characteristics
• Capacitance vs Reverse Voltage
• Series Resistance
• Capacitance Change Ratio

Specifications

Frequently asked questions

What is the maximum reverse voltage rating for this diode?

The maximum reverse voltage rating is 30 V.

What is the typical capacitance of the device at a 2V reverse bias and 1MHz frequency?

The typical capacitance is 10.5 pF under those conditions.

What are the minimum and maximum junction temperatures for this component?

The junction temperature ranges from a minimum of -55 to a maximum of 125 °C.
