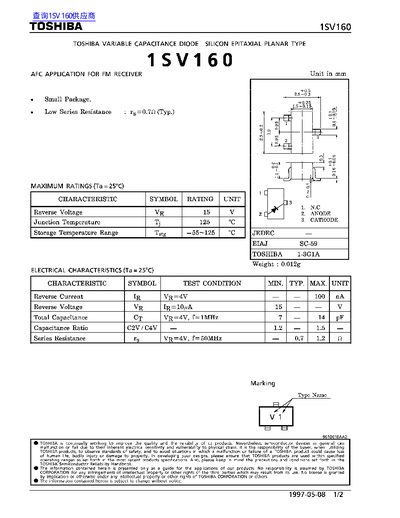

This document is a technical datasheet for the Toshiba 1SV160, a silicon epitaxial planar type variable capacitance diode designed for AFC applications in FM receivers. The device features a small EIAJ SC-59 package with low series resistance and operates within specific voltage and temperature limits.
The datasheet provides maximum ratings including a reverse voltage of 15V, a junction temperature of 125°C, and a storage temperature range from -55°C to 125°C. Key electrical characteristics listed include total capacitance ranging from 7pF to 14pF at 4V and 1MHz, with a typical series resistance of 0.7Ω.
| Reverse Voltage (VR) | 15 V |
|---|---|
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range (Tstg) | -55~125 °C |
| Total Capacitance (Cp) | 7 - 14 pF |
| Series Resistance (tg) | 0.7 Ω (Typ.) |
The maximum reverse voltage rating is 15 V.
The typical series resistance is 0.7 ohms.
