This datasheet provides detailed information on the KM6164000BL-L 256Kx16 bit Low Power CMOS Static RAM product, including the product's package type, pin arrangement, pin function, interface, power supply, power supply voltage, operating temperature range, storage temperature range, data retention time, data retention voltage, static current, dynamic current, power consumption, and corresponding timing.

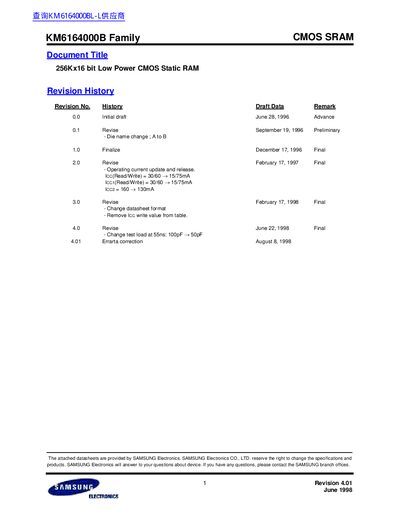

This document describes the KM6164000B Family, a series of 256Kx16 bit Low Power CMOS Static RAMs fabricated by Samsung Electronics. The devices are available in Commercial (0~70°C) and Industrial (-40~85°C) temperature ranges with various speed options including 55ns, 70ns, and 100ns access times.
| Organization | 256Kx16 bit |
|---|---|
| Power Supply Voltage | 4.5~5.5V |
| Low Data Retention Voltage | 2V (Min) |
| Package Type | 44-TSOP2-F/R |
| Operating Temperature (Commercial) | 0~70°C |
The device retains data when the supply voltage is at least 2.0V.
The maximum current is 15mA for both commercial and industrial products.
