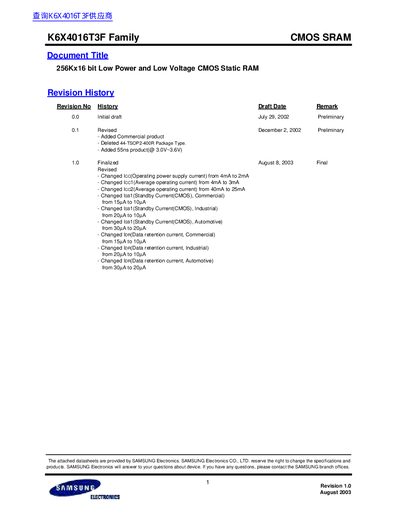

The K6X4016T3F Family CMOS SRAM is a low power and low voltage CMOS static RAM produced by Samsung Electronics.
This datasheet details the K6X4016T3F family of 256Kx16 bit CMOS static RAMs, designed for low power and low voltage operation. It covers specifications for commercial (0~70°C), industrial (-40~85°C), and automotive (-40~125°C) temperature ranges, with operating voltage from 2.7V to 3.6V. Key parameters include power consumption, data retention voltage, and timing characteristics for read/write cycles. The devices are packaged in 44-TSOP2-400F format and support three-state outputs for system integration.
| Organization | 256K x16 |
|---|---|
| Power Supply Voltage | 2.7~3.6V |
| Low Data Retention Voltage | 2V (Min) |
| Package Type | 44-TSOP2-400F |
| Operating Temperature - Commercial | 0~70°C |
| Operating Temperature - Industrial | -40~85°C |
| Data Retention Voltage | 2.0~3.6V |
| Data Retention Current - Industrial | 410µA |
| Standby Current - Commercial | 10µA |
| Standby Current - Industrial | 410µA |
| Standby Current - Automotive | 20µA |
| Operating Power Supply Current - Commercial | 2mA |
| Average Operating Current - Commercial | 3mA |
| Average Operating Current - Industrial | 25mA |
The operating voltage range is 2.7V to 3.6V.
The family supports commercial (0~70°C), industrial (-40~85°C), and automotive (-40~125°C) temperature ranges.
The data retention voltage is 2.0V minimum.
The package type is 44-TSOP2-400F.
